This chapter describes how feedback can be used to shape the local behavior of a system. The concept of reachability is introduced and used to investigate how to "design" the dynamics of a system through placement of its eigenvalues. In particular, it will be shown that under certain conditions it is possible to assign the system eigenvalues to arbitrary values by appropriate feedback of the system state.

### Chapter contents

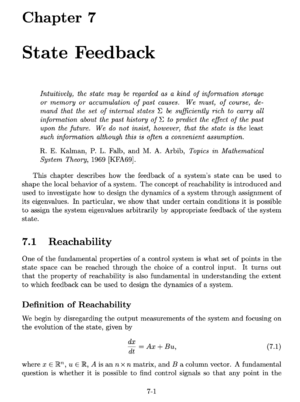

PDF (24 Jul 2020)

1. Observability
• Definition of Observability
• Testing for Observability
• Observable Canonical Form
2. State Estimation
• The Observer
• Computing the Observer Gain
3. Control Using Estimated State
• Kalman's Decomposition of a Linear System
4. Kalman Filtering
• Discrete-Time Systems
• Continuous-Time Systems
• Linear Quadratic Gaussian Control (LQG)
5. State Space Controller Design
• Two Degree-of-Freedom Controller Architecture
• Feedforward Design and Trajectory Generation
• Disturbance Modeling and State Augmentation
• Feedback Design and Gain Scheduling
• Nonlinear Estimation
• Computer Implementation
Exercises

### Teaching Materials

• Lecture(s): <ul><li>"[[Category::Lecture]]" is not recognized as valid category or value annotation.</li> <!--br--><li>Some subquery has no valid condition.</li></ul>

## Chapter Summary

This chapter describes how state feedback can be used to design the (closed loop) dynamics of the system:

1. A linear system with dynamics

{\displaystyle {\begin{aligned}{\dot {x}}&=Ax+Bu&\quad x&\in \mathbb {R} ^{n},u\in \mathbb {R} \\y&=Cx+Du&\quad y&\in \mathbb {R} \end{aligned}}}

is said to be reachable if we can find an input ${\displaystyle u(t)}$ defined on the interval ${\displaystyle [0,T]}$ that can steer the system from a given final point ${\displaystyle x(0)=x_{0}}$ to a desired final point ${\displaystyle x(T)=x_{f}}$.

2. The reachability matrix for a linear system is given by

${\displaystyle W_{r}=\left[{\begin{matrix}B&AB&\cdots &A^{n-1}B\end{matrix}}\right].}$

A linear system is reachable if and only if the reachability matrix ${\displaystyle W_{\text{r}}}$ is invertible (assuming a single intput/single output system). Systems that are not reachable have states that are constrained to have a fixed relationship with each other.

3. A linear system of the form

${\displaystyle {\frac {dz}{dt}}=\left[{\begin{matrix}-a_{1}&-a_{2}&-a_{3}&\dots &-a_{n}\\1&0&0&\dots &0\\0&1&0&\dots &0\\\vdots &&\ddots &\ddots &\vdots \\0&&&1&0\\\end{matrix}}\right]z+\left[{\begin{matrix}1\\0\\0\\\vdots \\0\end{matrix}}\right]u}$

is said to be in reachable canonical form. A system in this form is always reachable and has a characteristic polynomial given by

${\displaystyle \det(sI-A)=s^{n}+a_{1}s^{n-1}+\cdots +a_{n-1}s+a_{n},}$

A reachable linear system can be transformed into reachable canonical form through the use of a coordinate transformation ${\displaystyle z=Tx}$.

4. A state feedback law has the form

${\displaystyle u=-Kx+k_{r}r}$

where ${\displaystyle r}$ is the reference value for the output. The closed loop dynamics for the system are given by

${\displaystyle {\dot {x}}=(A-BK)x+Bk_{\text{f}}r.}$

The stability of the system is determined by the stability of the matrix ${\displaystyle A-BK}$. The equilibrium point and steady state output (assuming the systems is stable) are given by

${\displaystyle x_{e}=-(A-BK)^{-1}Bk_{\text{f}}r\qquad y_{e}=Cx_{e}.}$

Choosing ${\displaystyle k_{\text{f}}}$ as

${\displaystyle k_{r}={-1}/\left(C(A-BK)^{-1}B\right).}$
gives ${\displaystyle y_{e}=r}$.

5. If a system is reachable, then there exists a feedback law of the form

${\displaystyle u=-Kx+k_{\text{f}}r}$

the gives a closed loop system with an arbitrary characteristic polynomial. Hence the eigenvalues of a reachable linear system can be placed arbitrarily through the use of an appropriate feedback control law.

6. Integral feedback can be used to provide zero steady state error instead of careful calibration of the gain ${\displaystyle k_{\text{f}}}$. An integral feedback controller has the form

${\displaystyle u=-K(x-x_{\text{e}})-k_{\text{i}}z+k_{\text{f}}r,}$

where

${\displaystyle {\dot {z}}=y-r}$

is the integral error. The gains ${\displaystyle K}$, ${\displaystyle k_{i}}$ and ${\displaystyle k_{\text{f}}}$ can be found by designing a stabilizing state feedback for the system dynamics augmented by the integrator dynamics.

7. A linear quadratic regulator minimizes the cost function

${\displaystyle {\tilde {J}}=\int _{0}^{\infty }\left(x^{T}Q_{x}x+u^{T}Q_{u}u\right)\,dt.}$

The solution to the LQR problem is given by a linear control law of the form

${\displaystyle u=-Q_{u}^{-1}B^{T}Sx.}$

where ${\displaystyle S\in \mathbb {R} ^{n\times n}}$ is a positive definite, symmetric matrix that satisfies the equation

${\displaystyle SA+A^{T}S-SBQ_{u}^{-1}B^{T}S+Q_{x}=0.}$

This equation is called the algebraic Riccati equation and can be solved numerically.

The following exercises cover some of the topics introduced in this chapter. Exercises marked with a * appear in the printed text.
