Frequency Domain Analysis

From FBSwiki
Jump to navigation Jump to search
Prev: Transfer Functions Chapter 10 - Frequency Domain Analysis Next: PID Control

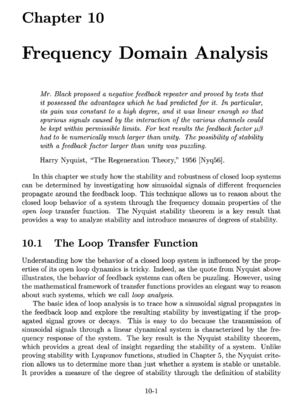

In this chapter we study how the stability and robustness of closed loop systems can be determined by investigating how sinusoidal signals of different frequencies propagate around the feedback loop. This technique allows us to reason about the closed loop behavior of a system through the frequency domain properties of the open loop transfer function. The Nyquist stability theorem is a key result that provides a way to analyze stability and introduce measures of degrees of stability.

Chapter contents

PDF (24 Jul 2020)

  1. The Loop Transfer Function
  2. The Nyquist Criterion
    • The Nyquist Plot
    • The General Nyquist Criterion
    • Conditional Stability
  3. Stability Margins
  4. Bode's Relations and Minimum Phase Systems
  5. Generalized Notions of Gain and Phase
    • System Gain and Passivity
    • Extensions of the Nyquist Criterion
    • Describing Functions
  6. Further Reading
Exercises

Teaching Materials

  • Lecture(s): <ul><li>"[[Category::Lecture]]" is not recognized as valid category or value annotation.</li> <!--br--><li>Some subquery has no valid condition.</li></ul>
  • Additional Exercises

Supplemental Information
