Figure 6.1: Superposition of homogeneous and particular solutions

Chapter Linear Systems 6.1 Superposition of homogeneous and particular solutions https://github.com/murrayrm/fbs2e-python/blob/main/figure-6.1-superposition.py python-control, springmass.py

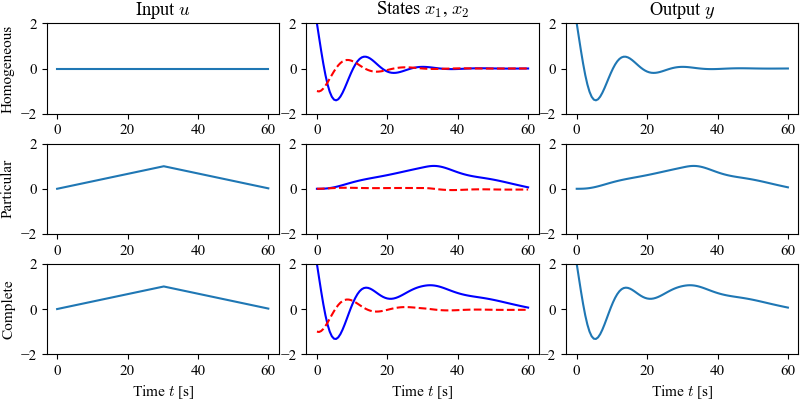

Figure 6.1: Superposition of homogeneous and particular solutions. The first row shows the input, state, and output corresponding to the initial condition response. The second row shows the same variables corresponding to zero initial condition but nonzero input. The third row is the complete solution, which is the sum of the two individual solutions.

```
# superposition.py - superposition of homogeneous and particular solutions
# RMM, 19 Apr 2024

import matplotlib.pyplot as plt
import numpy as np
import control as ct
import fbs                      # FBS plotting customizations

# Spring mass system
from springmass import springmass       # use spring mass dynamics
sys = springmass / springmass(0)        # normalize the response to 1
X0 = [2, -1]                            # initial condition

# Create input vectors
tvec = np.linspace(0, 60, 100)
u1 = 0 * tvec
u2 = np.hstack([tvec[0:50]/tvec[50], 1 - tvec[0:50]/tvec[50]])

# Run simulations for the different cases
homogeneous = ct.forced_response(sys, tvec, u1, X0=X0)
particular = ct.forced_response(sys, tvec, u2)
complete = ct.forced_response(sys, tvec, u1 + u2, X0=X0)

# Plot results
fig, axs = plt.subplots(3, 3, figsize=[8, 4], layout='tight')
for i, resp in enumerate([homogeneous, particular, complete]):
axs[i, 0].plot(resp.time, resp.inputs)
axs[0, 0].set_title("Input \$u\$")
axs[i, 0].set_ylim(-2, 2)

axs[i, 1].plot(
resp.time, resp.states[0], 'b',
resp.time, resp.states[1], 'r--')
axs[0, 1].set_title("States \$x_1\$, \$x_2\$")
axs[i, 1].set_ylim(-2, 2)

axs[i, 2].plot(resp.time, resp.outputs)
axs[0, 2].set_title("Output \$y\$")
axs[i, 2].set_ylim(-2, 2)

# Label the plots
axs[0, 0].set_ylabel("Homogeneous")
axs[1, 0].set_ylabel("Particular")
axs[2, 0].set_ylabel("Complete")
for i in range(3):
axs[2, i].set_xlabel("Time \$t\$ [s]")

# Save the figure
fbs.savefig('figure-6.1-superposition.png')

```
