Figure 4.20: Simulation of the predator-prey system

Chapter	Examples
Figure number	4.20
Figure title	Simulation of the predator–prey system
GitHub URL	https://github.com/murrayrm/fbs2e-python/blob/main/figure-4.20-predprey ctstime.py
Requires	python-control

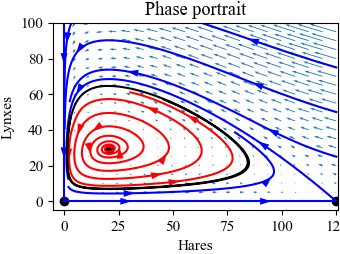

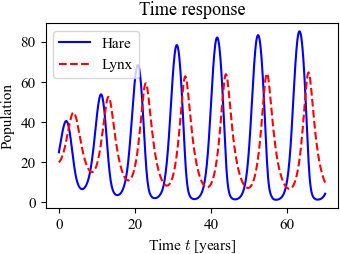

Figure 4.20: Simulation of the predator–prey system. The figure on the left shows a simulation of the two populations as a function of time. The figure on the right shows the populations plotted against each other, starting from different values of the population. The oscillation seen in both figures is an example of a limit cycle. The parameter values used for the simulations are a = 3.2, b = 0.6, c = 50, d = 0.56, k = 125, and r = 1.6.

# predprey_ctstime.py - Predator-prey model in continuous time
# RMM, 28 May 2023

import matplotlib.pyplot as plt
import numpy as np
import control as ct
import fbs                      # FBS plotting customizations

# Define the dynamis for the predator-prey system (no input)
def predprey_update(t, x, u, params={}):
    """Predator prey dynamics"""
    r = params.get('r', 1.6)
    d = params.get('d', 0.56)
    b = params.get('b', 0.6)
    k = params.get('k', 125)
    a = params.get('a', 3.2)
    c = params.get('c', 50)

    # Dynamics for the system
    dx0 = r * x[0] * (1 - x[0]/k) - a * x[1] * x[0]/(c + x[0])
    dx1 = b * a * x[1] * x[0] / (c + x[0]) - d * x[1]

    return np.array([dx0, dx1])

# Create a nonlinear I/O system
predprey_sys = ct.nlsys(predprey_update, states=2)

# Simulate a trajectory leading to a limit cycle
timepts = np.linspace(0, 70, 500)
sim = ct.input_output_response(predprey_sys, timepts, 0, [25, 20])

# Plot the results
fbs.figure('mlh')                                       # FBS  conventions
plt.plot(sim.time, sim.states[0], 'b-', label="Hare")
plt.plot(sim.time, sim.states[1], 'r--', label="Lynx")
plt.legend()
plt.xlabel("Time $t$ [years]")
plt.ylabel("Population")
plt.title("Time response")

# Save the figure
fbs.savefig('figure-4.20-predprey_ctstime-sim.png')     # PNG for web

# Generate a phase portrait
fbs.figure('mlh')
ct.phaseplot.equilpoints(predprey_sys, [-5, 126, -5, 100])
ct.phaseplot.streamlines(
    predprey_sys, np.array([
        [0, 100], [1, 0],
    ]), 10, color='b')
ct.phaseplot.streamlines(
    predprey_sys, np.array([[124, 1]]), np.linspace(0, 10, 500), color='b')
ct.phaseplot.streamlines(
    predprey_sys, np.array([[125, 25], [125, 50], [125, 75]]), 3, color='b')
ct.phaseplot.streamlines(predprey_sys, np.array([2, 8]), 6, color='b')
ct.phaseplot.streamlines(
    predprey_sys, np.array([[20, 30]]), np.linspace(0, 65, 500),
    gridtype='circlegrid', gridspec=[2, 1], arrows=10, color='r')
ct.phaseplot.vectorfield(predprey_sys, [5, 125, 5, 100], gridspec=[20, 20])

# Add the limit cycle
resp1 = ct.initial_response(predprey_sys, np.linspace(0, 100), [20, 75])
resp2 = ct.initial_response(
    predprey_sys, np.linspace(0, 20, 500), resp1.states[:, -1])
plt.plot(resp2.states[0], resp2.states[1], color='k')

# Legacy code
# def pp_ode(x, t):
#     return predprey_update(t, x, 0, {})
# ct.phase_plot(pp_ode, [0, 60, 7], [0, 50, 6])
# ct.phase_plot(pp_ode, [0, 60, 7], [60, 100, 4])
# ct.phase_plot(pp_ode, [70, 120, 6], [0, 50, 6])
# ct.phase_plot(pp_ode, [70, 120, 6], [60, 100, 4])

# # Plot the limit cycle
# ct.phase_plot(pp_ode, X0=sim.states[:, -1:].T, T=20)    # limit cycle
# ct.phase_plot(pp_ode, X0=[[120, 32], [120, 60]], T=20)  # outside trajectories
# ct.phase_plot(pp_ode, X0=[[19, 30]], T=75)              # inside trajectories

# Label the plot
plt.xlabel("Hares")
plt.ylabel("Lynxes")
plt.title("Phase portrait")
fbs.savefig('figure-4.20-predprey_ctstime-pp.png')      # PNG for web
