Figure 2.14: Responses of the systems with integral feedback

From FBSwiki
Jump to navigation Jump to search
Chapter Feedback Principles
Figure number 14
Figure title Responses of the systems with integral feedback
GitHub URL https://github.com/murrayrm/fbs2e-python/blob/main/figure-2.12,14-static nlsys.py
Requires python-control

Figure-2.14-static nlsys.png

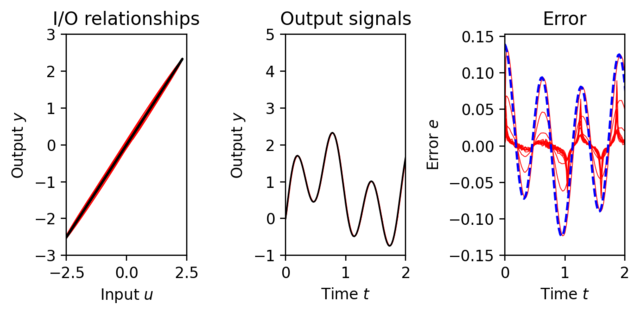

Figure 2.14: Responses of the systems with integral feedback (). The left figure shows the input/output relationships for the closed loop systems, and the center figure shows responses to the input signal (2.38) (compare to the corresponding responses in Figure 2.12. The right figure shows the individual errors (solid lines) and the approximate error given by equation (2.42) (dashed line).

# figure-2.12,14-static_nlsys.py - static nonlinear feedback system
# RMM, 21 Jun 2021
#
# Figure 2.12: Responses of a static nonlinear system. The left figure shows
# the in- put/output relations of the open loop systems and the right figure
# shows responses to the input signal (2.38). The ideal response is shown
# with solid bold lines. The nominal response of the nonlinear system is
# shown using dashed bold lines and the responses for different parameter
# values are shown using thin lines. Notice the large variability in the
# responses.
#
# Figure 2.14: Responses of the systems with integral feedback (ki =
# 1000). The left figure shows the input/output relationships for the closed
# loop systems, and the center figure shows responses to the input signal
# (2.38) (compare to the corresponding responses in Figure 2.12. The right
# figure shows the individual errors (solid lines) and the approximate error
# given by equation (2.42) (dashed line).
#
# Intial code contributed by Adam Matic, 26 May 2021.
#

import numpy as np
import matplotlib.pyplot as plt
import control as ct

# Static nonlinearity
def F(u, alpha, beta):
    return alpha * (u + beta * (u ** 3))

# Reference signal
t = np.linspace(0, 6, 300)
r = np.sin(t) + np.sin(np.pi * t) + np.sin((np.pi**2) * t)

#
# Closed loop response
#

# Create an I/O system representing the static nonlinearity
P = ct.NonlinearIOSystem(
    updfcn=None,
    outfcn=lambda t, x, u, params: F(u, params['a'], params['b']),
    inputs=['u'], outputs=['y'], name='P')

# Integral controller
ki = 1000
C = ct.tf2ss(ct.tf([ki], [1, 0]))

# Closed loop system
sys = ct.feedback(P * C, 1)

# Set up the plots for Figure 2.12
fig, [ax1, ax2, ax3] = plt.subplots(1, 3, figsize=(6, 3))

# Generate the input/output curves and system responses
for a in [0.1, 0.2, 0.5]:
    for b in [0, 0.5, 1, 2]:
        # Simulate the system dynamics
        t, y = ct.input_output_response(sys, t, r, params={'a':a, 'b':b})

        ax1.plot(r, y, 'r', linewidth=0.5);
        ax2.plot(t, y, 'r', linewidth=0.5)
        ax3.plot(t, r-y, 'r', linewidth=0.5)

# Left plot labels
ax1.set_title("I/O relationships")
ax1.set_xlabel("Input $u$")
ax1.set_ylabel("Output $y$")

# Draw reference line, set axis limits
ax1.plot(y, y, 'k-', linewidth=1.5)
ax1.set_ylim(-3, 3)
ax1.set_xlim(-2.5, 2.5)

# Center plot labels
ax2.set_title("Output signals")
ax2.set_xlabel("Time $t$")
ax2.set_ylabel("Output $y$")

# Draw reference line, set axis limits
ax2.plot(t, r, 'k-', linewidth=1)
ax2.set_ylim(-1, 5)
ax2.set_xlim(0, 2)

# Right plot labels
ax3.set_title("Error")
ax3.set_xlabel("Time $t$")
ax3.set_ylabel("Error $e$")

# Draw bounding line, set axis limits
rdot = np.diff(r)/(t[1] - t[0])     # Approximation of derivative
bmin = 0.1                          # See FBS2e, below equation (2.40)
ax3.plot(t[:-1], rdot/(bmin * ki), 'b--', linewidth=1.5)
ax3.set_xlim(0, 2)

plt.tight_layout()
